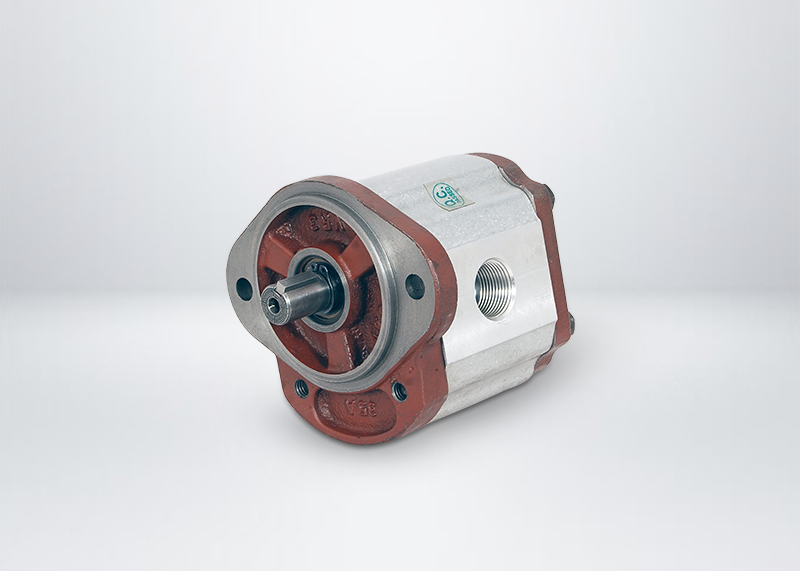

The Model 1P Hydraulic Pump is a powerful, high-flow hydraulic gear pump specifically designed to meet the needs of demanding applications that require higher fluid displacement. With a flow range spanning from 7 LPM to 40 LPM and a maximum pressure capacity of 207 Bar (3000 PSI), this pump is engineered to provide reliable power and consistent performance in both industrial and mobile hydraulic systems.
The Model 1P is built with a robust frame that ensures increased durability, superior performance, and an extended operational life. This makes it an ideal choice for heavy-duty applications that demand high efficiency and long-lasting reliability. Whether used in manufacturing, construction, or other industrial sectors, the Model 1P Hydraulic Pump delivers the power necessary to drive complex systems and machinery.
Thanks to its high-flow capacity, the Model 1P is perfect for systems requiring higher fluid displacement, ensuring smooth operation even under demanding conditions. The pump's advanced design offers exceptional durability and low maintenance requirements, providing optimal performance with minimal downtime.
Built to withstand the pressures of high-demand environments, the Model 1P Hydraulic Pump is a top choice for industries seeking a reliable, high-performance hydraulic pump for their most challenging applications. It excels in systems that require a higher flow rate and pressure, making it a go-to solution for users who need maximum efficiency and power.
With its large frame and high-performance features, the Model 1P Hydraulic Pump ensures that heavy-duty operations can be executed smoothly and efficiently, even under the toughest conditions. It’s the perfect solution for those looking to maximize their hydraulic system’s capabilities while ensuring long-term reliability and performance.
| Model Number | Theoretical Displacement | Max. Pressure | Port Size (BSP) | |||
|---|---|---|---|---|---|---|
| cc/rev | LPM | (bar) | (PSI) | Inlet | Outlet | |
| 5017 | 5.14 | 7.71 | 207 | 3000 | 1/2" | 1/2" |
| 5020 | 6.08 | 9.11 | 207 | 3000 | 1/2" | 1/2" |
| 5028 | 8.48 | 12.71 | 207 | 3000 | 1/2" | 1/2" |
| 5036 | 10.94 | 16.41 | 207 | 3000 | 3/4" | 1/2" |
| 5044 | 13.34 | 20.11 | 207 | 3000 | 3/4" | 3/4" |
| 5052 | 15.74 | 23.61 | 207 | 3000 | 3/4" | 3/4" |
| 5060 | 18.21 | 27.31 | 207 | 3000 | 3/4" | 3/4" |
| 5072 | 21.81 | 32.71 | 174 | 2525 | 3/4" | 3/4" |
| 5090 | 27.28 | 40.91 | 138 | 2000 | 3/4" | 3/4" |
The Model 1P Hydraulic Pump is the perfect solution for high-flow, high-performance hydraulic applications, ensuring power, precision, and reliability in every operation.
